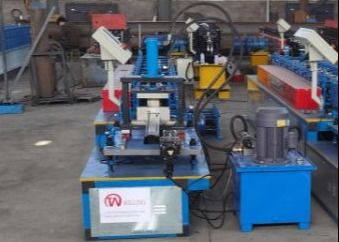

20-30m Per Min Flying Cutting Shutter Door Roll Forming Machine
It is controlled by a PLC control system to realize a fully automatic operation mode and an automatic roll forming machine for rolling shutters. Because the shutter doors have good fire and anti-theft functions and high safety performance, many warehouses in the food and pharmaceutical industries also use shutter doors to isolate them.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.6 mm - 0.9 mm |
| 3 | Working Speed | 20-30 m/min |
| 4 | Roller Station | 12 Stations |
| 5 |
Dimension (L*W*H) |
5500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 1 mm |
| 12 |
Driving Mode |
Gear Wheel |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application

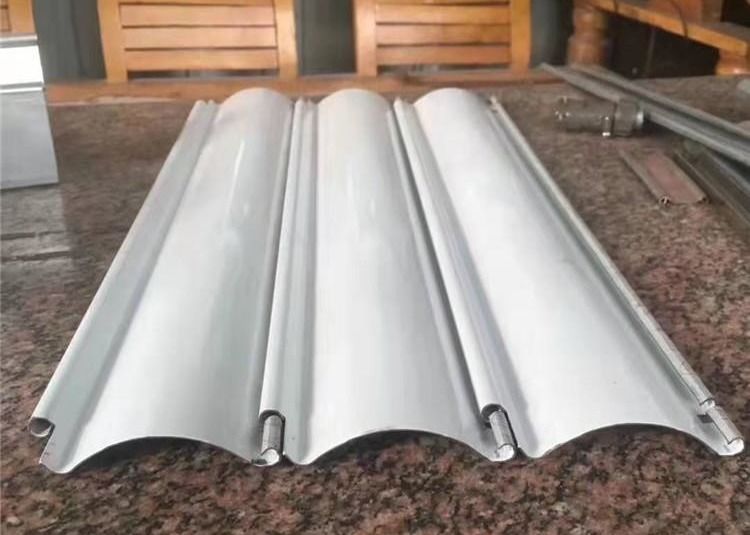

Rolling shutters are suitable for commercial facades, garages, shopping malls, factories, mining enterprises and other public places or residences. Especially where the door opening is large, the place where it is inconvenient to install the door body on the ground plays a role of convenient and quick opening. For example, it is used for garage doors, fireproof rolling shutter doors of shopping malls, and hangar doors.
Advantage
The rolling shutter door has beautiful appearance, compact and advanced structure, easy operation, sturdiness and durability, strong rigidity, good airtightness, no floor space, flexible and convenient opening and closing, and features such as wind, dust, fire, and anti-theft.
