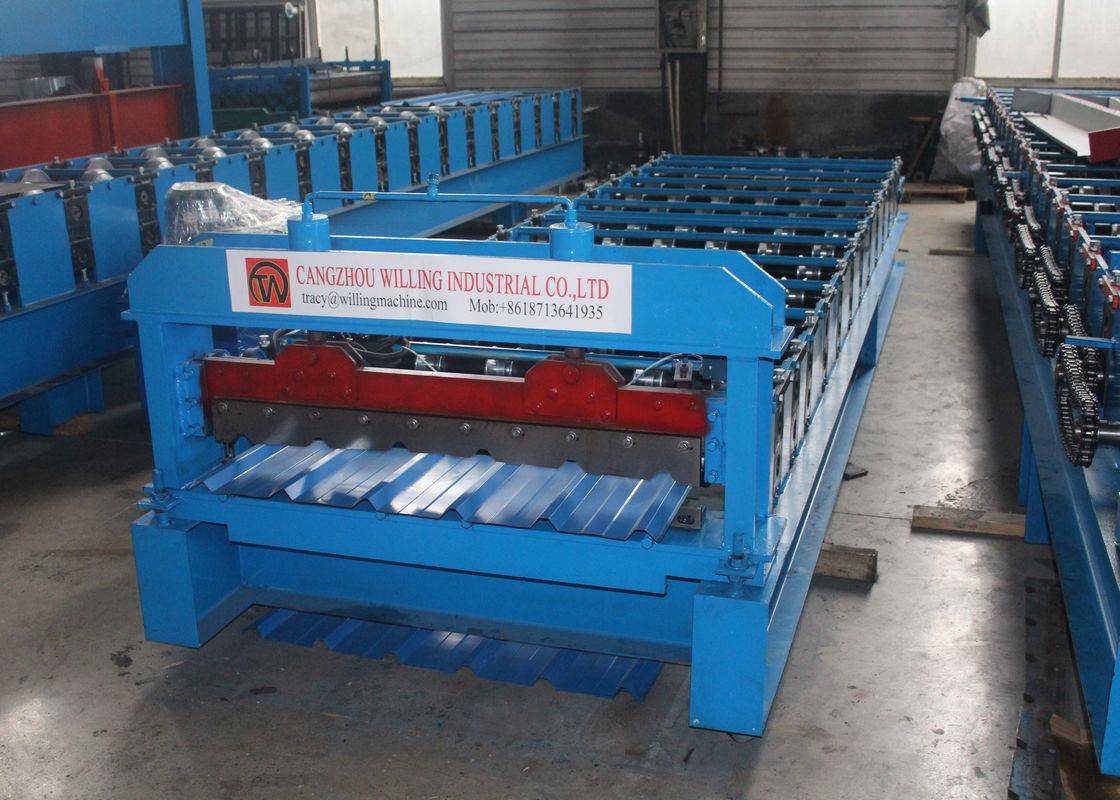

Long Span PLC Control High Speed Roof Roll Forming Machine
The Nigeria long span roll forming machine is a machine specially developed for the Nigerian market. This machine has the characteristics of high efficiency, low labor intensity, low energy consumption and low noise. Since the machine is equipped with a PLC control system, the entire machine can be operated by one or two people. The machine occupies a small area and has a reasonable design. Very suitable for small sites and on-site construction.
Equipment Detailed Parameters:
|
1 |
Suitable Material | PPGI PPGL GI GL |
|
2 |
Width of the raw material | 1250mm |
| 3 | Rows of rollers | 18rows |
| 4 | Dimension | 2500*1750*1650mm |
| 5 |
Main servo |
4kw |
| 6 | Hydraulic station power | 4kw |
| 7 | Thickness of raw material | 0.3-0.9mm |
|
8 |
Productivity |
15-25m/min |
| 9 | Diameter of shaft | ￠75mm |
|
10 |
Voltage | 380V 50Hz 3phases |
| 11 | Frame | 350H steel |
| 112 | Middle plate | 16mm |
Application
The products produced by Nigeria's large-span molding machine are widely used in industry and civil construction. For example, factories, warehouses, gymnasiums, exhibition halls, theaters, laboratories, prefabricated houses, etc. Because the color steel plate has the advantages of durability, long life, corrosion resistance, etc., it is also used in the chemical construction industry.
Advantage
The Nigeria large-span forming machine is composed of: the main body of the color steel tile press, the PLC computer control system, the hydraulic pump station system, and the automatic post-cutting system. The machine adopts high-number pulse input function, high-number input performance is excellent, AB phase anti-interference ability is strong. It is also equipped with a fixed value interrupt function to ensure accuracy.
