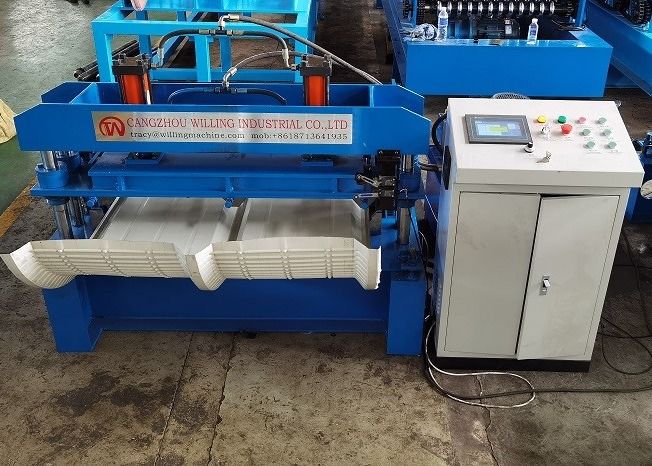

Auomatic curving Pressure Bending Roof Roll Forming Machine
In order to meet the special requirements of customers for roof shapes, we have introduced a manual crimping and bending roof coil forming machine. This machine has changed the cold pressing mode of the previous machine. Use the roller to change the shape of the roof slab. This production method is suitable for thin and easily damaged panels. Due to its low cost, small footprint, and simple operation, this equipment is used by customers to produce roof color steel plates.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.9mm |
| 3 | Working Speed | 0-15 m/min |
| 4 | Roller Station | 3 Raws |
| 5 |
Dimension (L*W*H) |
520 mm*520 mm*1200 mm |
| 6 | Machine Weight | 500 KG |
| 7 |
Electrical Control System |
Manual |
| 8 |
Drive Motor Power |
4KW |
| 9 |
Tile type |
bending |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The curved roofing sheet usually used in metal roof building system, when raining the curved roofing sheet can guiding the water from panel to floor.This kind of roof system can prevent hydrops effectively it widely used in garage roofs, workshop roofs, prefab roofs, laboratory roofs, apartment roofs, etc.
Advantage
The color steel plate is made of color steel, which has good carrying capacity and durability. In a hot or low temperature environment, the surface of the tile will not be damaged or cracked and the color can be kept stable.
Because the color steel plate has the advantages of low density, no water absorption, no microporous water seepage, etc., the waterproof effect is very good.
