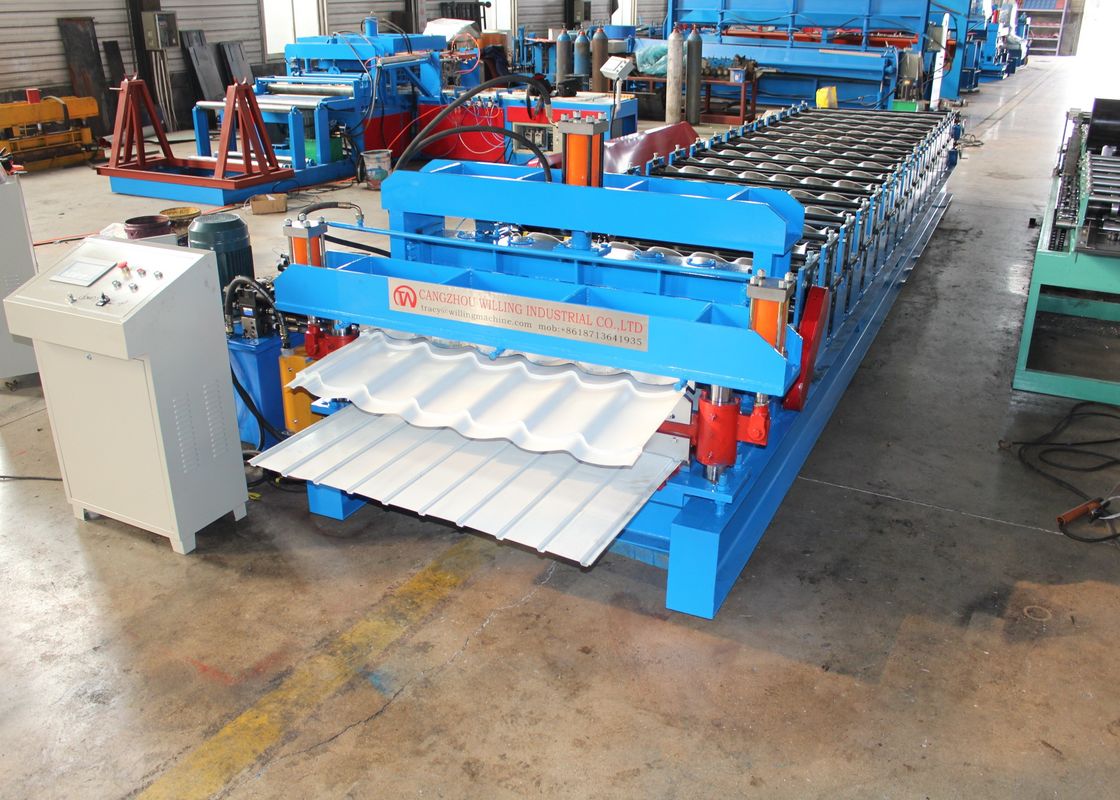

Double Layer Trapezoid And Glazed Roof Roll Forming Machine
The double-layer roof calendering machine can make two different contour drawings on one machine, which can save more space and money than using two different machines.
Equipment Detailed Parameters:
|
1 |
Suitable Material | PPGI (235Mpa) |
|
2 |
Width of the raw material | 1250mm |
| 3 | Rows of rollers | 15 rows & 16 rows |
| 4 | Dimension | 7300*1550*1200mm |
| 5 |
Main servo |
7.5kw |
| 6 | Hydraulic station power | 11kw |
| 7 | Thickness of raw material | 0.3-0.8mm |
|
8 |
Productivity |
15-20m/min |
| 9 | Diameter of shaft | ￠75mm |
|
10 |
Voltage | 380V 50Hz 3phases |
| 11 | Frame | 350H steel |
| 112 | Middle plate | 16mm |
Application
The double-layer tile machine is economical and can combine two types of equipment into one. That is to say, it saves floor space, and the equipment cost of the double-layer tile machine is much lower than that of two single-layer machines. The profiled plate rolled by the double-layered tile machine is not only solemn and elegant, but also beautiful and novel. And the appearance is flat, the corrugation is uniform, and the utilization rate is high.
Advantage
