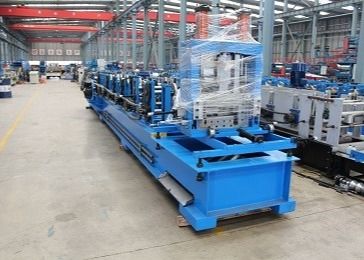

C Purlin 80-300mm Z Purlin120-300mm CZ Purlin Roll Forming Machine
Specification
| No. | Item | Description |
| 1 | Coil | Galvanized |
| 2 | Material Thickness | 1 mm- 3 mm |
| 3 | Working Speed | 15- 20 m/min ( not including the cutting time) |
| 4 | Roller Station | 12-16 Raws |
| 5 |
Dimension (L*W*H) |
9500 mm*1400 mm*2000 mm |
| 6 | Machine Weight | 9000 KG |
| 7 |
Electrical Control System |
Panasonic PLC |
| 8 |
Drive Motor Power |
15KW |
| 9 |
Hydraulic Station Power |
22 KW |
| 10 |
Power Supply |
360V/60HZ/3PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 2 inch |
| 13 |
Material of Shaft |
80 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The products of C & Z purlin forming machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large scale and mid scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
Advantage
