Slitting Line Low Speed Cut To Length And Slitting Line

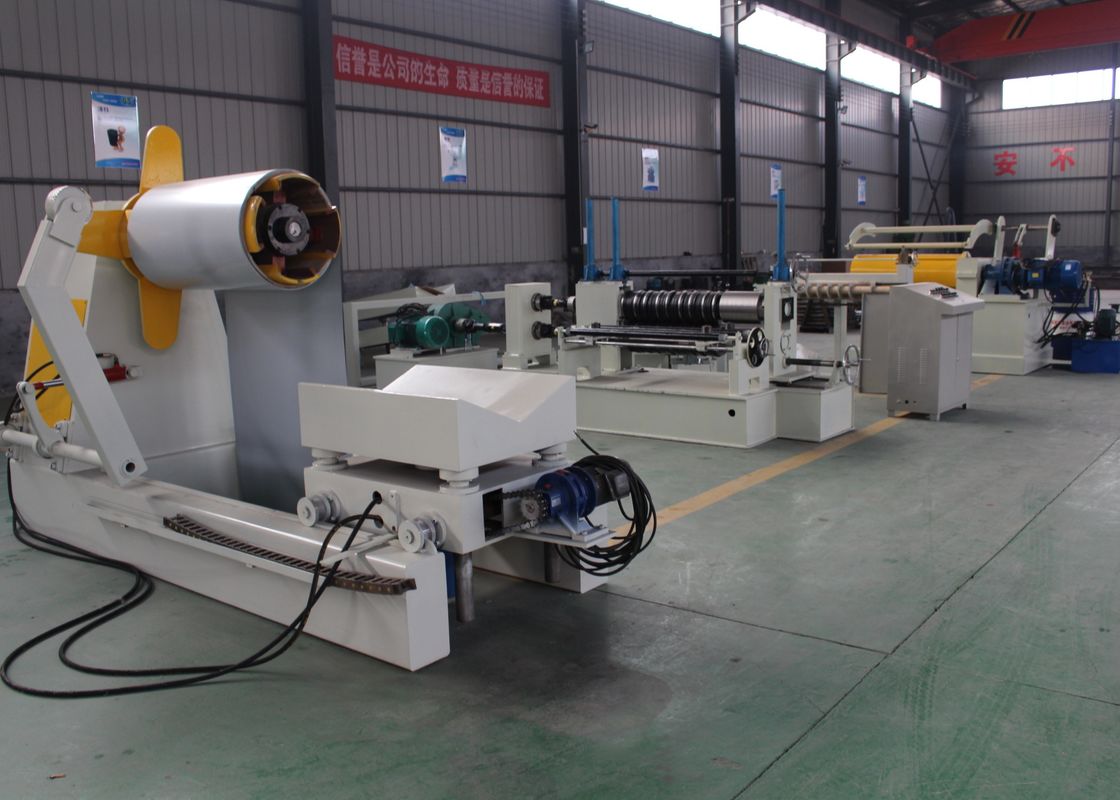

The slitting production line consists of three main parts: decoiler, slitter and rewinder. The material is fed from the uncoiler through the nip between the two circular cutting wheels (one at the top and the other below), and then re-wound in the slit covering on the recoiler. The equipment supplier and the end user must work together, so the appropriate components, shank size, tool kit, horsepower and tension are suitable for the material to be cut.
Specifications
| No. | Item | Description |
| 1 Main Specification | 1 Raw Material | Galvanized, Aluminum,Color steel, Handness 235MPa - 485MPa |
| 2 Raw Material Thickness | 0.2 mm - 3.0 mm | |
| 3 Raw Material Width | 600 mm - 1600 mm | |
| 4 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 5 TapeOuter Diameter | φ 1600 mm | |
| 6 Coil Weight | 5 tons - 10 tons | |
| 7 /Slitting No. | Max 30 pcs | |
| 8 The Highest Slitting LineSpeed | 8 m/min - 30 m/min | |
| 9 Minimum Cutting Line Width | 35 mm | |
| 10 Cutting Width Precision | ± 0.01 - ± 0.05 mm | |
| 11. Rated Operational Voltage | 380 V, 3 Phase, 60 Hz | |
| 12. Total Weight | 14000 KG | |
| 12. Working Space(L*W) | 20000 mm*6000 mm | |
| 2 Decoiler Machine Specification | 1 Tape Outer Diameter | Max φ 1600 mm |
| 2 Tape Width | 600 mm - 1600 mm | |
| 3 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 4 Coil Weight | 5 /7/10 tons | |
| 5 Max Working Speed | 8 m/min - 30 m/min | |
| 6 Tape Tight Range | φ 480 mm - φ 530 mm | |
| 7 Shaft Diameter | φ180 mm | |
| 3 Decoiler Machine Specification | 8 Roller Effective Length | 1600 mm |
| 9 Drive Moter Power | 5 KW | |
| 10. Loading Car Diameter | φ 700 mm - φ 1500 mm | |
| 11 Loading Car Weight | 5 /7/ 10 tons | |
| 12 Car Speed | About 4 m/min | |
| 4 Slitting Machine Specification | 1 Cutting Width | Max φ 1600 mm |
| 2 Cutting Thickness | 0.2 mm - 2.0 mm | |
| 3 Cutter Shaft Diameter | φ180 mm | |
| 4 Cutter Shaft Material | Cr 40 | |
| 5.Cutter Size | 200 mm*300 mm*15 mm | |
| 6 Cutter Material | Cr12MoV | |
| 7 Cutter Spacer Size | 180 mm*240 mm*15 mm | |
| 8 Drive Moter | 15 kw | |
| 9 Cutting No. | 2-30 pcs | |
| 10 Cutter No. | Max 32 pcs | |
| 5 Planing Machine | 1 Shaft Diameter | φ 130 mm |
| 2 Shaft No. | Up 2 rows, down 3 rows | |
| 3 Mid Plate Thickness | 40 mm | |
| 4 Mulch Applicator Diameter | φ 130 mm | |
| 5 Film Width | 1600 mm | |
| 6 Tension Table | 1 Segregation Shaft | 3 pcs, 1 pcs pressure shaft |
| 2 Air Cylinder | 3 pcs | |
| 7 Recoiler Specification | 1 Tape Outer Diameter | Max φ 1600 mm |
| 2 Tape Width | 600 mm - 1600 mm | |
| 3 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 4 Coil Weight | 5 - 10 tons | |
| 5 Max Working Speed | 8 m/min - 30 m/min | |
| 6 Tape Tight Range | φ 485 mm - φ 530 mm | |
| 7 Shaft Diameter | φ 180 mm | |
| 8 Roller Effective Length | 1750 mm | |
| 9 Drive Moter Power | 30 kw | |
| 8 Recoiler Specification | 10 Loading Car Diameter | φ 1000 mm - φ 1750 mm |
| 11 Loading Car Weight | Max 10 tons | |
| 12 Car Speed | About 4 m/min | |
| 9 Electrical Control System | 2 sets. Computer Control System is Siemens PLC. | |
| 10 Edge Collecting Machine | 1 Drive Moter | 3 kw |
| 2 Collecting Material Width | Max 20 mm | |
| 3 Double Edge Width | 400 mm | |
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Advantage
Our split line is to maintain high accuracy while allowing instant changes. Large-capacity coilers and full control of machinery, using the most advanced technology to supervise quality control and automation, we provide production lines on time and on budget!
