Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU WILLING
Chứng nhận:
ISO CE
Số mô hình:
Bảng điều khiển bánh sandwich

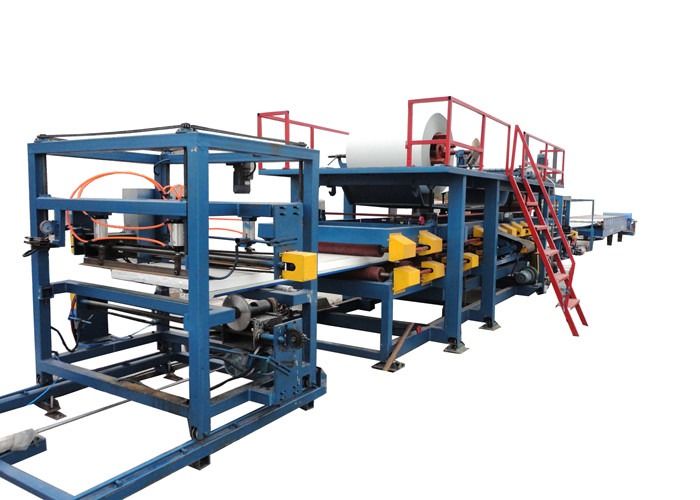

heat-preservation Rock wool Sandwich Panel Roll Forming Machine
heat-preservation Rock wool Sandwich Panel is made of asbestos and bonding materials. Suitable for heat preservation, heat insulation, sound insulation and electrical insulation. Thermal insulation board has unparalleled excellent performance of other similar boards. With its extremely low thermal conductivity, it has good heat preservation and heat insulation properties; with its extremely low water absorption, it has excellent waterproof and moisture-proof properties. ; With its high compressive strength, it has a large load-bearing performance; with its light material and simple construction, it is especially suitable for high-rise building strategies and large-scale modern construction of large-scale projects.
Specification
| No. | Item | Description |
| 1 |
Dimensions (L*W*H) |
400000 mm*2250 mm*2500 m |
| 2 | Steel Thickness | 0.25 mm- 0.8 mm |
| 3 | Sandwich Panel Thickenss | 50 mm - 300 mm |
| 4 | Roller Station |
Up layer: 13 rows. Down layer: 14 rows |
| 5 |
Working Speed |
4 m /min |
| 6 |
Power |
Main motor power: 4kw . Flying saw power: 2*0.75kw |
| 7 |
Total Power |
32 KW |
| 8 |
Machine Weight |
22 tons |
| 9 |
Steel Coil Width |
1000 mm 1200 mm 1250 mm |
| 10 |
Hydraulic motor power |
15 kw |
| 11 |
Cutting Accuracy |
±2 mm |
Application
It can be widely used in various fields of engineering construction: in the external wall insulation of construction projects, inverted roof insulation and anti-seepage, floor radiation heating, etc., and can effectively reduce the load of high-rise buildings; water conservancy projects, such as reservoirs, channels, dams The heat preservation and heat insulation can prevent the foundation from thawing and cracking; the high-cold area roads, railways, and tunnels are insulated and anti-freeze treatment to prevent the foundation from thawing damage.
Advantage
Rock wool insulation board has the characteristics of fire prevention, heat insulation, sound absorption and noise reduction, non-corrosive, safety, and environmental protection.
Rock wool insulation board is made of natural volcanic rock, so it has the following characteristics: It has a high fire rating, will not stretch, shrink or deform in a fire, is resistant to high temperatures, and has a melting point higher than 1000°C. It is very stable in size. In a fire, no smoke or burning droplets/fragments are produced and no substances and gases harmful to the environment are released.
