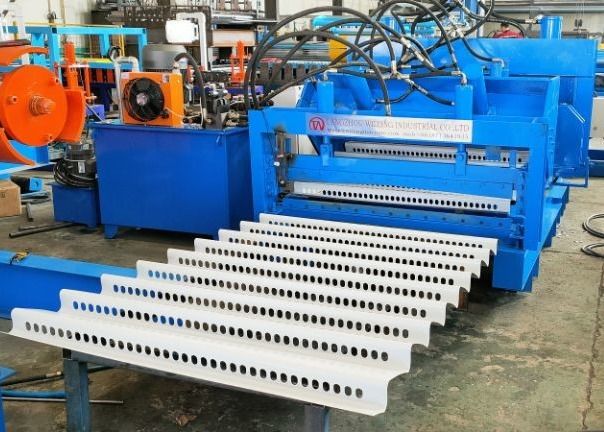

Buffer Collision avoidance Highway Guardrail Roll Forming Machine
With Advantage technology and professional Engineering team. our Buffer Collision avoidance Highway Guardrail Roll Forming Machine can meet 0-20m per min output.
The components of the Highway Guardrail Roll Forming Machine include: the complete color steel tile press, PLC computer control system, hydraulic pump station system, and fully automatic post-shearing system.
Equipment features: Color steel plate equipment adopts advanced automatic control software, color steel tile pressing machine realizes production information management, and the whole machine automatic control system adopts a highly integrated network, which makes the automation system more superior.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.2-10mm |
| 3 | Working Speed | 0-20 m/min ( not including the cutting time) |
| 4 | Roller Station | 12 Raws |
| 5 |
Dimension (L*W*H) |
58000 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
4KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The anti-collision guardrail produced by this machine is widely used in the maintenance of public works, transportation, communities, ports, airports, storage and so on. especially used for Bridge guardrails, bridge road collision guardrails, pedestrian road guardrails, motorized and non-motorized collision guardrails, road center collision guardrails, road collision guardrails with billboards, river safety guardrails, lawn flowerbed guardrails and other bridge road collision guardrails.
Advantage
As the anti-collision barrier has beautiful and practical appearance, good compression resistance, corrosion resistance, aging resistance, sunlight resistance, weather resistance, convenient installation and transportation, and long service life, it has been widely used in the above scenes. application.
