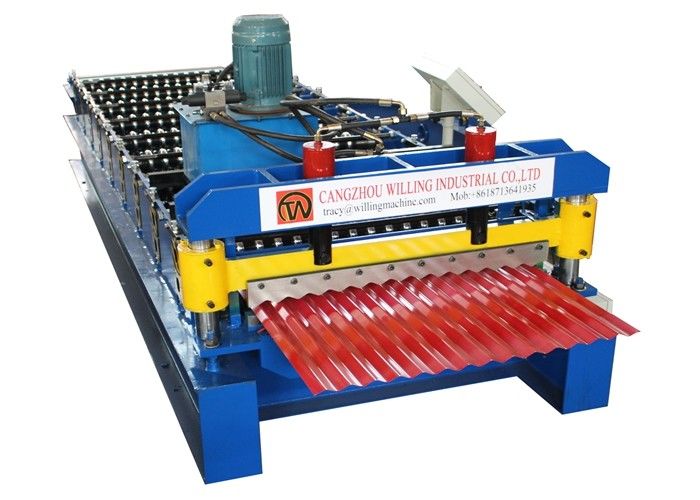

Circular Arc Steel Tile Roof Tile Roll Forming Machine
With more than 10 years work experience, our Circular Arc Steel Tile Roof Tile Roll Forming Machine has been exported to many countries.
Due to its durability, convenient operation, stable operation, good material, high hardness, and long operating life, the tile press is highly praised by a wide range of users.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 10-15m/min ( not including the cutting time) |
| 4 | Roller Station | 16 Raws |
| 5 |
Dimension (L*W*H) |
7500 mm*1500 mm*1500 mm |
| 6 | Machine Weight | 5500 KG |
| 7 |
Electrical Control System |
Panasonic PLC (can be customized) |
| 8 |
Drive Motor Power |
5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
380V/60HZ/3 PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
Arc steel plates are mainly used for roofs, walls, doors, large-span factories, warehouses, office buildings, villas, roof additions, air purification rooms, cold storage, shops, kiosks and temporary houses in industrial and commercial buildings.
Advantage
(1) Manual uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 Ton.
(2) Feeding table
Receiving the raw material (steel sheet), it guarantees parallel and everything is uniformity.
(3) Machine material
welded steel frame structure of our machine, AC frequency conversion motor reducer drive, chain transmission, heat treatment works together In order to get high quality product
(4) Shearing system
It adopts hydraulic station and automatic cut to length system to realize the stably cutting of certain length of products.
(5) Hydraulic system
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves works together to make sure the cuting is stability.
