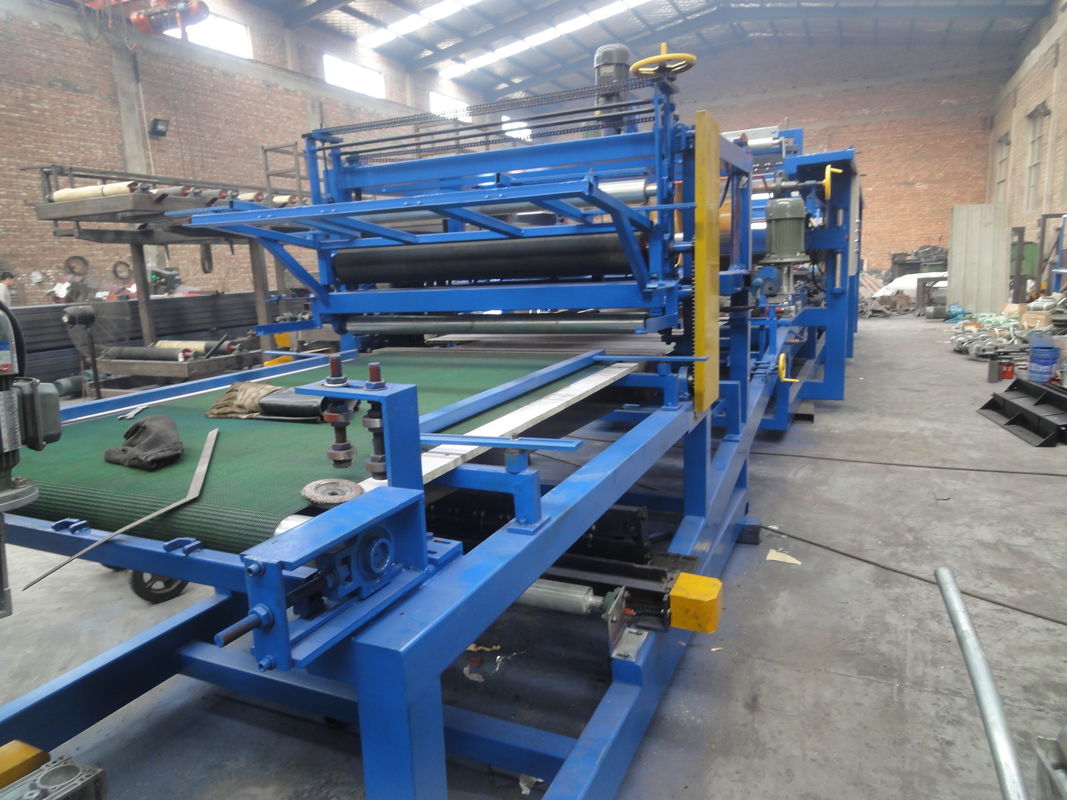

Fireproof Rock wool Sandwich Panel Roll Forming Machine
Fireproof rock wool sandwich panels are made of rock wool with vertical filament fibers as the core material, colored steel plate as the surface layer, after form by fireproof rock wool roll forming machineand bonded with a high-strength adhesive.
Duo to the colored steel plate and the core material core rock wool are non-combustible, So their fire resistance function is excellent.
Specification
| No. | Item | Description |
| 1 |
Dimensions (L*W*H) |
400000 mm*2250 mm*2500 m |
| 2 | Steel Thickness | 0.3 mm- 0.8 mm |
| 3 | Sandwich Panel Thickenss | 20 mm - 300 mm |
| 4 | Roller Station |
Up layer: 13 rows. Down layer: 14 rows |
| 5 |
Working Speed |
4-5 m /min |
| 6 |
Power |
Main motor power: 4kw . Flying saw power: 2*0.75kw |
| 7 |
Total Power |
32 KW |
| 8 |
Machine Weight |
22 tons |
| 9 |
Steel Coil Width |
1000 mm 1200 mm 1250 mm |
| 10 |
Hydraulic motor power |
15 kw |
| 11 |
Cutting Accuracy |
±2 mm |
Application
Rock wool sandwich panel is widely using for drying rooms, paint rooms, industrial equipment, buildings, ships, insulation, sound insulation, etc. At the same time, it is suitable for electronic clean rooms, clean rooms, explosion-proof and fire-proof workshops, partitions, etc.
Advantage
Excellent fire resistance: The raw materials, production technology and formula used in the rock wool sandwich panel make it have good fire resistance. Experiments show that it has a fire resistance of more than 1000deg.
Good thermal insulation: The thermal insulation performance of rock wool sandwich panels is based on the thermal conductivity of rock wool=0.043w square meters. So it is very good for thermal insulation.
Sound absorption and heat insulation effect is remarkable: the rock wool sandwich panel has a significant reduction effect on noise transmission, especially suitable for places where designated flights pass. In addition, after the use of rock wool roof panels, the indoor sound caused by the impact of rain and hail on the roof steel plate of the building is also significantly reduced.
