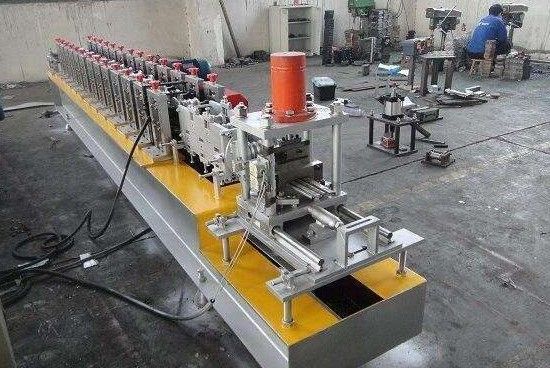

Steel Roll Up Shutter Slat Shutter Door Roll Forming Machine
The shutter door roll forming machine is use steel roll as materials to produce shutter slat.
With high quality rollers and shaft in our machine , It can produce high quality shutter slat with stroner strength. So it will have more durable and long service life characteristics.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.6mm - 1.0 mm |
| 3 | Working Speed | 8-15 m/min |
| 4 | Roller Station | 12 Stations |
| 5 |
Dimension (L*W*H) |
5500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 3 tons |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Hydraulic Station Power |
3 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 1 mm |
| 12 |
Driving Mode |
Gear Wheel |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The shutter door roll forming machine is widely used to produce different type steel shutter slat to meet different Application scenario.
like Industrial plant doors, workshop access doors, warehouse doors, moisture-proof doors, dust-proof doors, air convection doors, etc.
Advantages
The main function of the Shutter Door Roll Forming Machine is to produce shutter slat, and there are not too many restrictions on the materials . for those materials like Galvanized sheet, stainless steel sheet, pre-coated steel sheet are avaliable. which shows its strong adaptability.
Due to the machine equipped with computer control system, so it can be automatically produced with a simple instruction, which is convenient for people to operate.
Shutter Door Roll Forming Machine not only has the characteristics of strong adaptability, simple operation, etc. It still has a long service life, and the compact structure saves space. At the same time, it also has the advantages of low noise, stable operation and low cost.
