Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU WILLING
Chứng nhận:
ISO, CE
Số mô hình:
dây cắt tự động
Băng hình
Băng hình
Băng hình
Băng hình

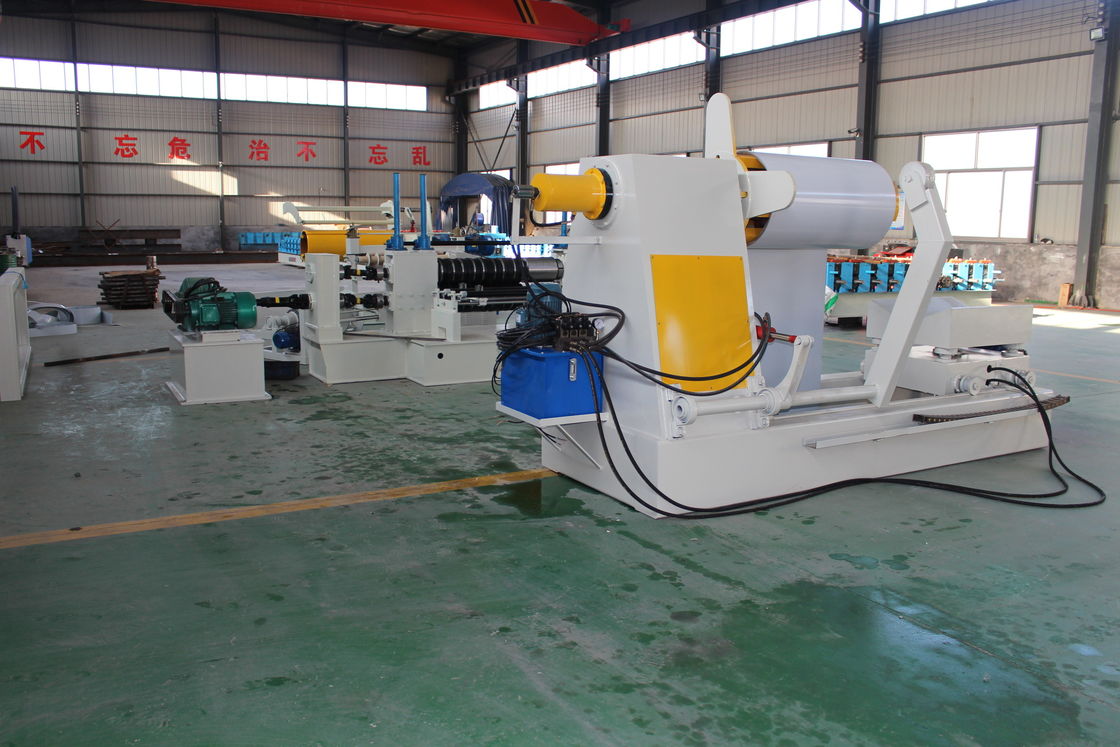

High Speed Heavy Duty Slitting Line With Hydraulic Uncoiler And Recoiler
Our production is capable of covering all the clientele’s needs and is divided into categories on the basis of dimensions and thickness of the material to machine and production quantities. These parameters make it necessary to divide the cut-to-length cutting lines into LIGHT, MEDIUM and HEAVY.
LIGHT up to 15 Ton, 1550 mm, thickness from 0.2 mm to 3 mm, speeds up to 200-350 m/min
MEDIUM up to 30 Ton, 1600 mm, thickness from 4 mm to 12.7 mm, speeds up to 150 m/min
HEAVY up to 35 Ton, 2200 mm, thickness from 8 mm to 16 mm, speeds up to 20-40 m/min
Main Technical Specifications
| No. | Item | Description |
| 1 Main Specification | 1 Raw Material | Galvanized, Aluminum,Color steel, Handness 235MPa - 485MPa |
| 2 Raw Material Thickness | 0.3 mm - 3.0 mm | |
| 3 Raw Material Width | 600 mm - 1600 mm | |
| 4 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 5 TapeOuter Diameter | φ 1600 mm | |
| 6 Coil Weight | 5 tons - 10 tons | |
| 7 /Slitting No. | Max 30 pcs | |
| 8 The Highest Slitting LineSpeed | 8 m/min - 30 m/min | |
| 9 Minimum Cutting Line Width | 35 mm | |
| 10 Cutting Width Precision | ± 0.01 - ± 0.05 mm | |
| 11. Rated Operational Voltage | 240 V, 3 Phase, 60 Hz | |
| 12. Total Weight | 13000 KG | |
| 12. Working Space(L*W) | 20000 mm*6000 mm | |
| 2 Decoiler Machine Specification | 1 Tape Outer Diameter | Max φ 1600 mm |
| 2 Tape Width | 600 mm - 1600 mm | |
| 3 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 4 Coil Weight | 5 tons - 10 tons | |
| 5 Max Working Speed | 8 m/min - 30 m/min | |
| 6 Tape Tight Range | φ 480 mm - φ 530 mm | |
| 7 Shaft Diameter | φ180 mm | |
| 3 Decoiler Machine Specification | 8 Roller Effective Length | 1600 mm |
| 9 Drive Moter Power | 5.5 KW | |
| 10. Loading Car Diameter | φ 700 mm - φ 1500 mm | |
| 11 Loading Car Weight | 5 tons - 10 tons | |
| 12 Car Speed | About 4 m/min | |
| 4 Slitting Machine Specification | 1 Cutting Width | Max φ 1600 mm |
| 2 Cutting Thickness | 0.3 mm - 2.0 mm | |
| 3 Cutter Shaft Diameter | φ180 mm | |
| 4 Cutter Shaft Material | Cr 40 | |
| 5.Cutter Size | 200 mm*300 mm*15 mm | |
| 6 Cutter Material | Cr12MoV | |
| 7 Cutter Spacer Size | 180 mm*240 mm*15 mm | |
| 8 Drive Moter | 15 kw | |
| 9 Cutting No. | 2-30 pcs | |
| 10 Cutter No. | Max 32 pcs | |
| 5 Planing Machine | 1 Shaft Diameter | φ 130 mm |
| 2 Shaft No. | Up 2 rows, down 3 rows | |
| 3 Mid Plate Thickness | 40 mm | |
| 4 Mulch Applicator Diameter | φ 130 mm | |
| 5 Film Width | 1600 mm | |
| 6 Tension Table | 1 Segregation Shaft | 3 pcs, 1 pcs pressure shaft |
| 2 Air Cylinder | 3 pcs | |
| 7 Recoiler Specification | 1 Tape Outer Diameter | Max φ 1600 mm |
| 2 Tape Width | 600 mm - 1600 mm | |
| 3 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 4 Coil Weight | 5 - 10 tons | |
| 5 Max Working Speed | 8 m/min - 30 m/min | |
| 6 Tape Tight Range | φ 485 mm - φ 530 mm | |
| 7 Shaft Diameter | φ 180 mm | |
| 8 Roller Effective Length | 1750 mm | |
| 9 Drive Moter Power | 30 kw | |
| 8 Recoiler Specification | 10 Loading Car Diameter | φ 1000 mm - φ 1750 mm |
| 11 Loading Car Weight | Max 10 tons | |
| 12 Car Speed | About 4 m/min | |
| 9 Electrical Control System | 2 sets. Computer Control System is Siemens PLC. | |
| 10 Edge Collecting Machine | 1 Drive Moter | 3 kw |
| 2 Collecting Material Width | Max 20 mm | |
| 3 Double Edge Width | 400 mm | |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received.
