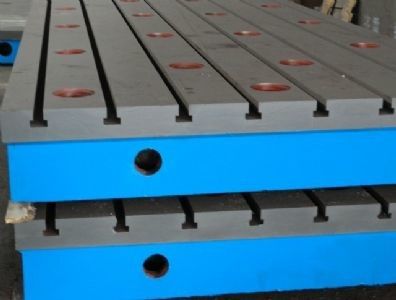

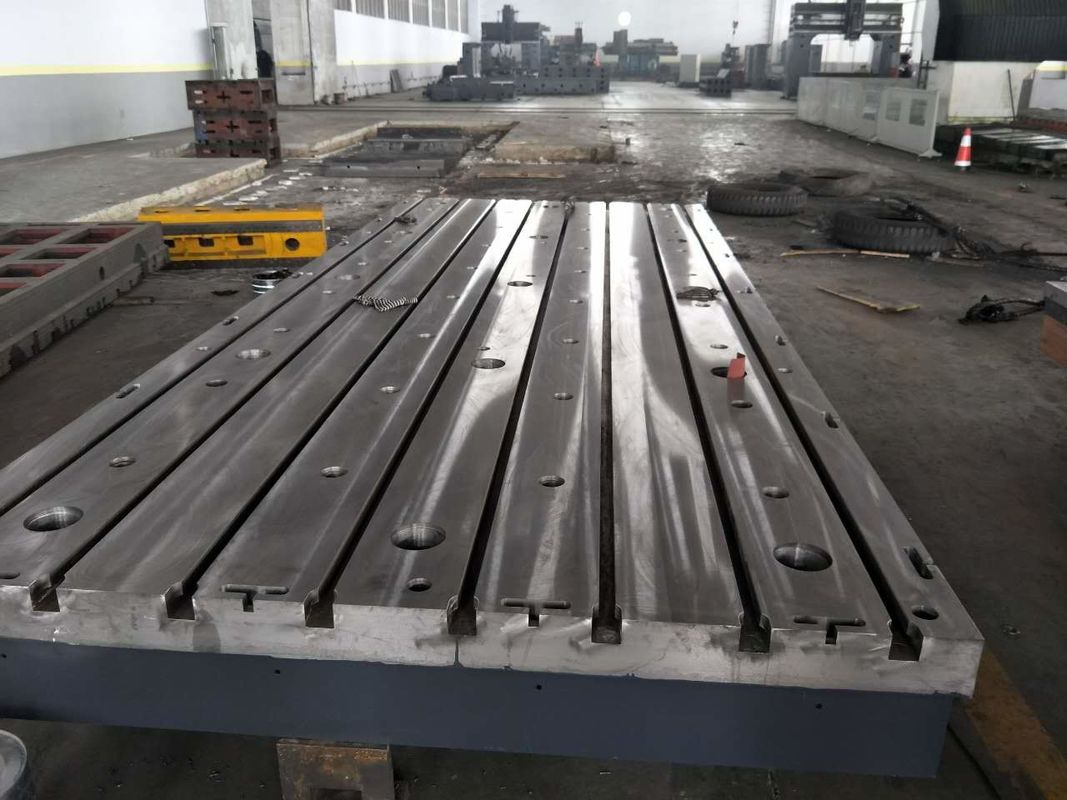

Cast Iron Mounting Plate
Cast iron surface plates are also known as cast iron platform, the cast iron surface plates are manufactured according to GB4986-85 standard to ensure the high quality. The products are always made into ribbed plate or box-type; our company uses the scraping process to improve the precision of the products. Since the products are customized, so the customers can customize the size according to the actual needs. Plurality of cast iron surface plate can be spliced, once abrasion after use, the plate can be re-repair scratch to resume its accuracy.
usage
(1) Suitable for various inspections and benchmark planes for accuracy measurement.
(2) Used widely as the measurement benchmark for machine tool inspection and to inspect thedimension accuracy or running difference with the function of performing precise lineation.
(3) It is an essential measuring tool in machine manufacturing.
| specification(Lx W)mm | precision grade | |||
|---|---|---|---|---|
| 0 | 1 | 2 | 3 | |
| flatness tolerance (um) | ||||
| 200X200 | 3.5 | 7 | 14 | 27 |
| 300X200 | 4 | 8 | 15 | 30 |
| 300X300 | 4 | 8 | 15 | 30 |
| 300X400 | 4 | 8 | 16 | 32 |
| 400X400 | 4.5 | 8.5 | 17 | 34 |
| 400X500 | 4.5 | 9 | 18 | 35 |
| 400X600 | 5 | 10 | 19 | 37 |
| 500X500 | 5 | 10 | 19 | 37 |
| 500X600 | 5 | 10 | 19 | 39 |
| 500X800 | 5.5 | 11 | 21 | 43 |
| 600X800 | 5.5 | 11 | 22 | 44 |
| 600X900 | 6 | 11.5 | 23 | 46 |
| 1000X750 | 6 | 12.5 | 25 | 50 |
| 1000X1000 | 7 | 13.5 | 27 | 54 |
| 1000X1200 | 7 | 14 | 29 | 58 |
| 1000X1500 | 8 | 16 | 32 | 63 |
| 1000X2000 | 9 | 18.5 | 37 | 74 |
| 1500X2000 | 10 | 20 | 40 | 80 |
| 1500X2500 | 11 | 22.5 | 45 | 90 |
| 1500X3000 | 13 | 25 | 50 | 100 |
| 2000X2000 | 11 | 22 | 44 | 88 |
| 2000X3000 | 13 | 27 | 53 | 106 |
| 2000X4000 | 16 | 32 | 64 | 127 |
| 2000X5000 | 19 | 37 | 75 | 150 |
| 2000X6000 | 43 | 86 | 172 | |
| 2000X7000 | 49 | 97 | 194 | |
| 2000X8000 | 54.5 | 109 | 218 | |
| 2500X3000 | 28.5 | 57 | 114 | |
| 2500X4000 | 33 | 67 | 133 | |
| 2500X5000 | 39 | 77 | 154 | |
| 2500X6000 | 44 | 88 | 176 | |
| 2500X7000 | 50 | 99 | 198 | |
| 2500X8000 | 55 | 110 | 221 | |
| 3000X3000 | 30.5 | 61 | 122 | |
| 3000X4000 | 35 | 70 | 140 | |
| 3000X5000 | 40 | 80 | 160 | |
| 3000X6000 | 45 | 90.5 | 181 | |
| 3000X7000 | 51 | 101 | 203 | |
| 3000X8000 | 56 | 112.5 | 225 | |
| 4000X4000 | 39 | 78 | 156 | |
| 4000X5000 | 43 | 87 | 174 | |
| 4000X6000 | 48 | 96.5 | 193 | |
| 4000X7000 | 53 | 107 | 213.5 | |
| 4000X8000 | 59 | 117 | 235 | |
