Nguồn gốc:
TRUNG QUỐC
Hàng hiệu:
cangzhou willing
Chứng nhận:
CE,ISO
Số mô hình:
1450
Băng hình
Băng hình
Băng hình
Băng hình

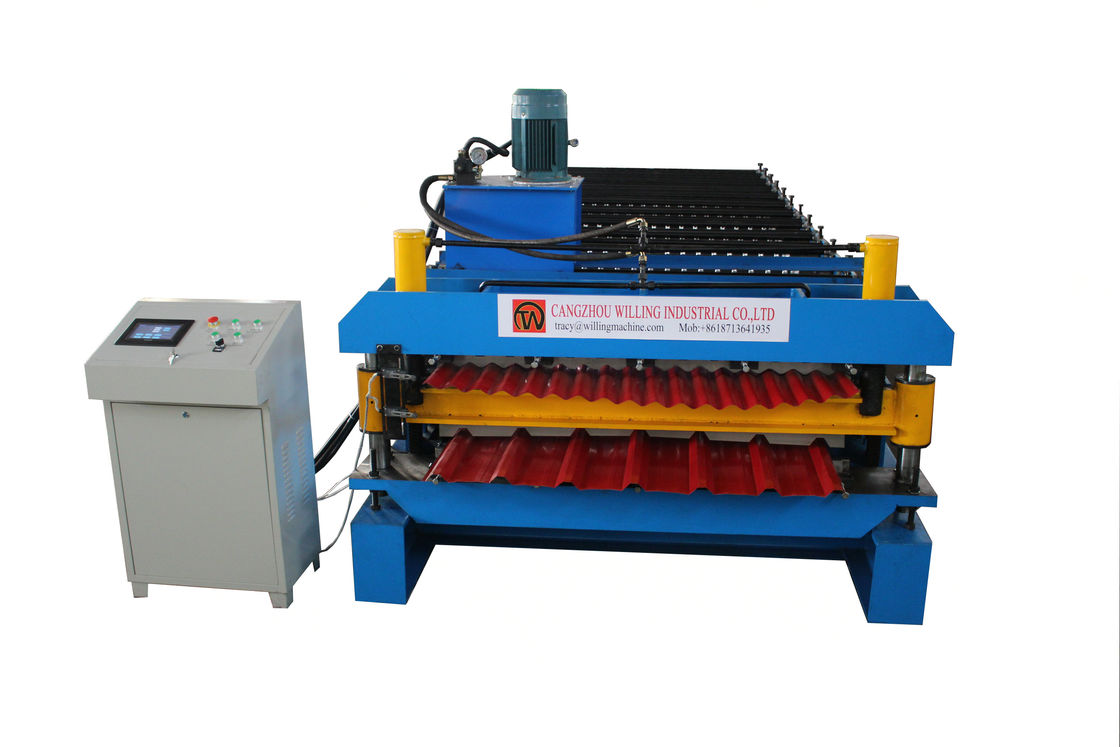

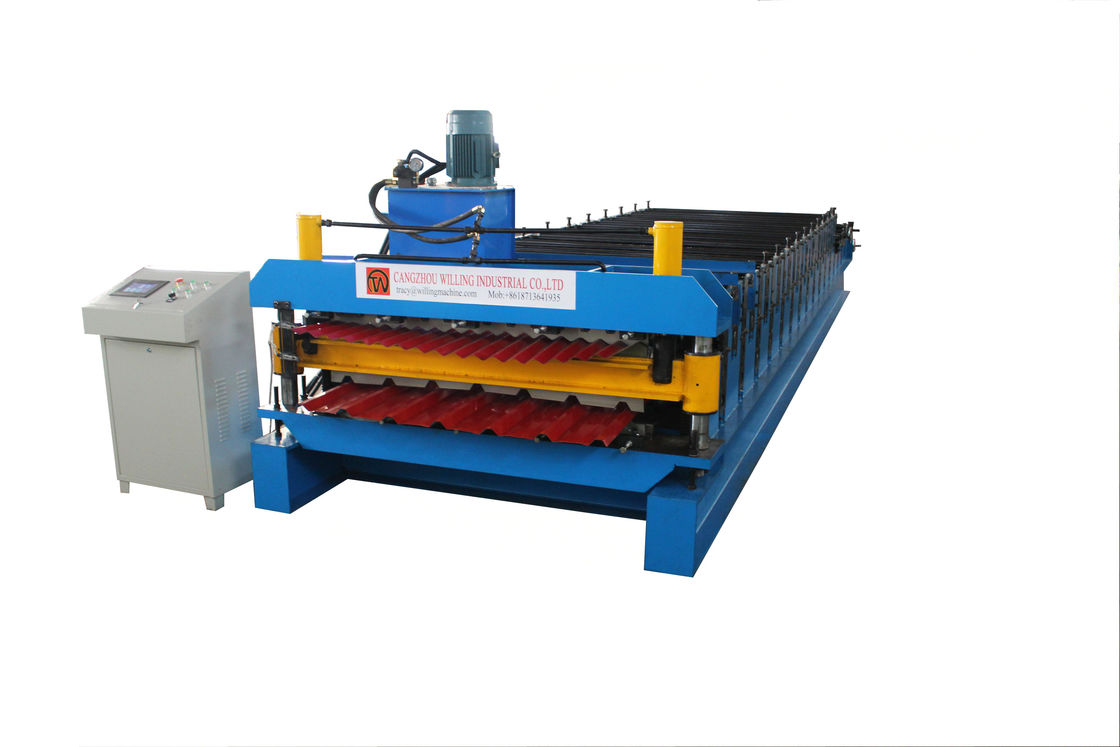

1450mm Width 85mm Shaft Double Deck Roof Roll Forming Machine For India
To meet the requirements for roll forming two different profiles in a limited plant area with quick product changeover, We have various kinds of double layer roll forming machine.
The machine have alternating bottom and upper stands. Rolls for one profile( like ibr sheeting ) are installed in the bottom stands, and rolls for another profile(like corrugated sheeting )are mounted on the upper stands. The whole line will use only one uncoiler, one cutoff unit, one controlled box. But the machine can’t produce the 2 profiles at the same time.
Equipment Detailed Parameters:
| No. | Item | Description |
| 1 | Coil | Width:1450mm |
| 2 | Forming speed | 8-15 m/min (not including cutting time) |
| 3 | Roller Stations | 12 stations & 16 stations |
| 4 | Material of Roller | 45# steel finish machining, plated hard chromium surface |
| 5 | Material of Main Shaft | 45# steel finishing machining and then slack quench processed |
| 6 | Material of Shaft | 85 mm 45#steel forged |
| 7 | Driven Motor Power | 11 KW |
| 8 | Hydraulic Station Power | 3 KW |
| 9 | Hydraulic Station Pressure | 12.0 Mpa |
| 10 | Electrical Control System | Panasonic PLC |
| 11 | Dimension (L*W*H) | 7750mm*1250mm*1200mm |
| 12 | Material of Cutter | GCr12 |
| 13 | Driving Mode | single chain 1 inch |
| 14 | Material Thickness | 0.3-1.0mm |
| 15 | Power Supply | 380V, 60HZ, 3 PHASES |
| 16 | Cutting accuracy | ±2 mm |
