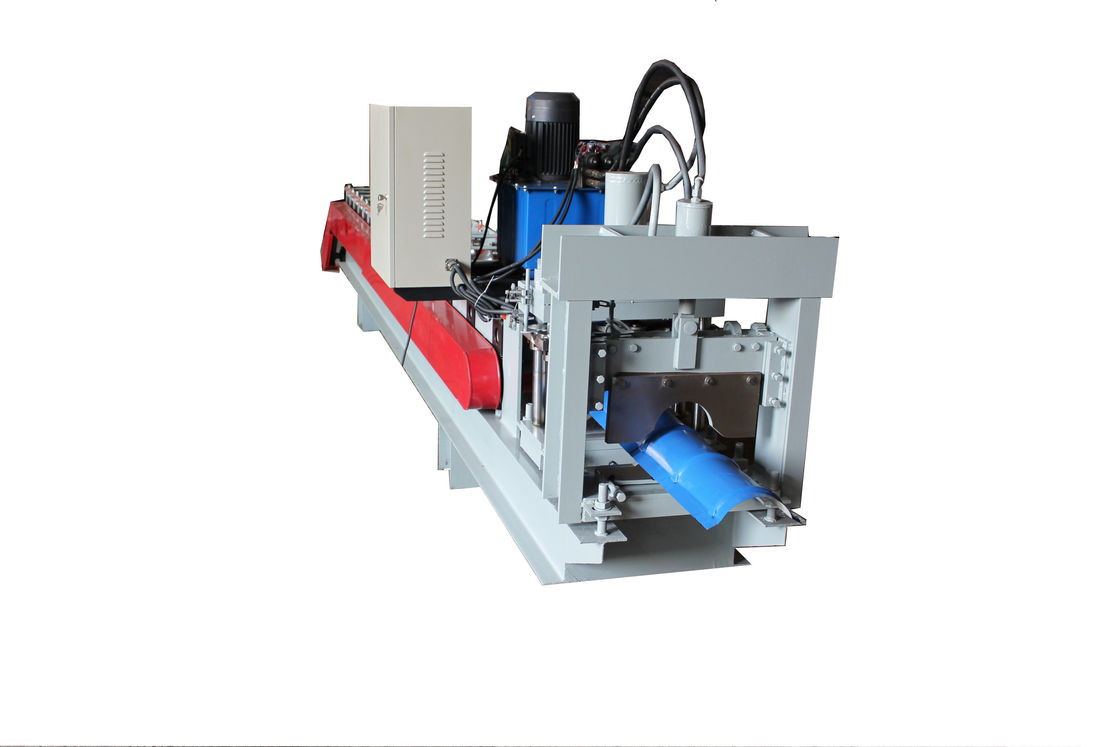

312 Colored Steel Ridge Cap Roof Roll Forming Machine With 14 Rows
Description
The ridge caps made by our Colored Steel Ridge Cap Roof Roll Forming Machine are beautiful and bright. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas. The ridge caps produced by this machine look beautiful , elegant and noble .They are widely used as the roof of garden ,factory ,hotel, exhibition center and villa ,etc.
Specifications
|
No
|
||
|
1
|
Suitable Material | PPGI(235MPA) |
|
2
|
Width of the raw material | 312mm |
| 3 | Rows of rollers | 14 rows |
| 4 | Appearance size | 6880*500*1200mm |
| 5 |
Total power
|
Main Motor 3 kw + Pump 3kw
|
| 6 | Thickness of raw material | 0.3-0.6mm |
|
7 |
Productivity |
8-12m/min(not including cutting time)
|
| 8 | Diameter of shaft | ￠70mm |
|
9
|
Voltage | 380V 60H 3Phase |
| 10 | Big frame | 350H steel |
| 11 | Middle plate | 16mm |
