Nguồn gốc:
TRUNG QUỐC
Hàng hiệu:
cangzhou willing
Chứng nhận:
CE,ISO
Số mô hình:
1300
Băng hình
Băng hình
Băng hình
Băng hình

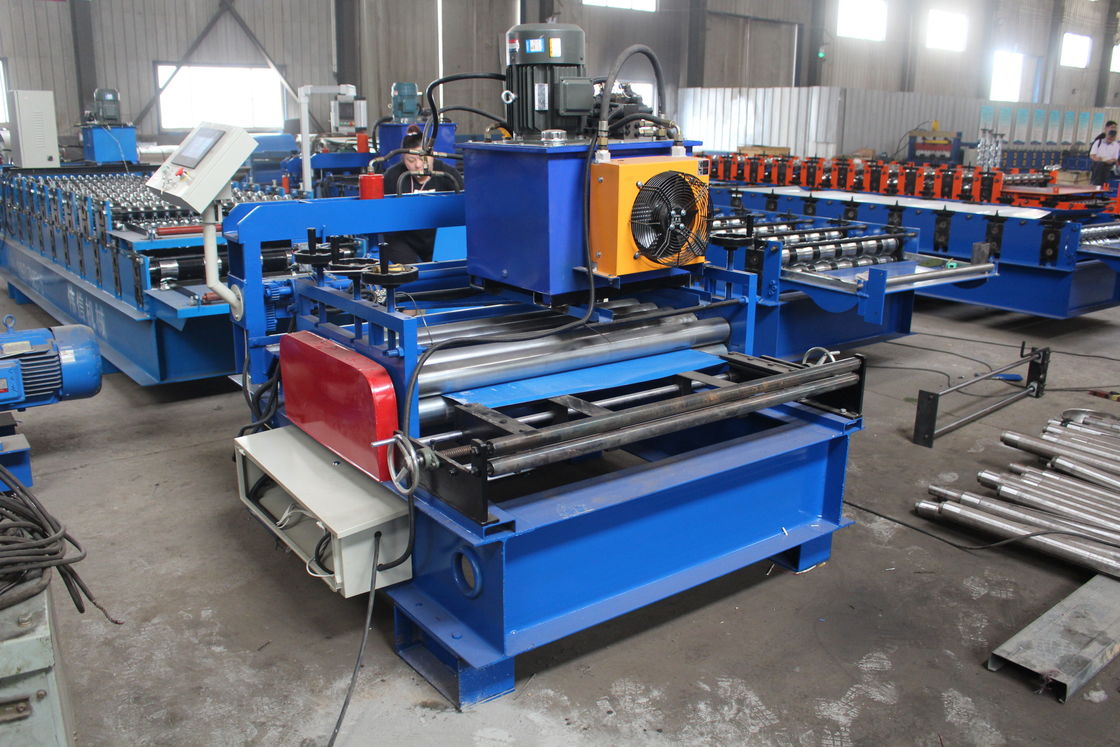

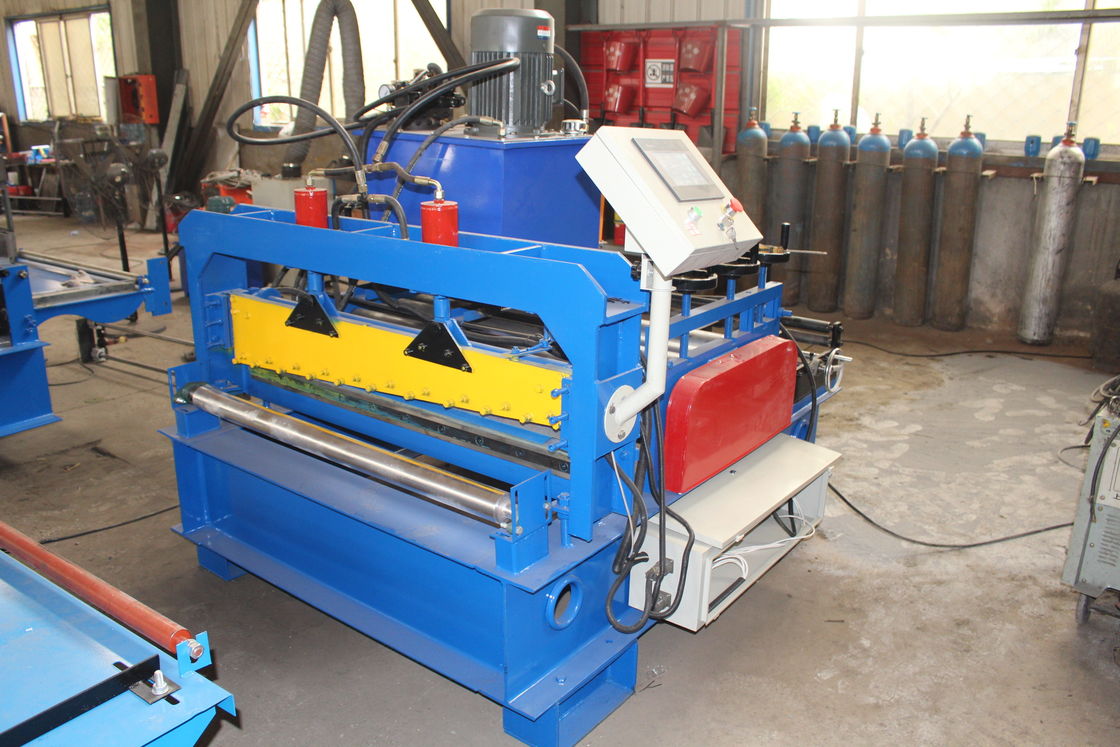

0.12-0.6mm 1300mm Width Full Automatic Leveling / Cut To Length Machine
Steel coil cut to length machine is widely used for auto parts, annealing, metal sheet, automobile parts, metal case, metal punching, package steel strips industries, Etc. Our steel coil cut to length machine has been exported more than 50 countries, also win good reputation from our customers, and we will be stronger and have a good team for design and development. We always win with our qualified quality, and to cooperate with you is our biggest honor.
| No. | Item | Description |
| 1 | Coil | Width:1300mm (PPGI, GI with 235Mpa) |
| 2 | Forming speed | 8-15m/min (not including cutting time) |
| 3 | Roller Stations | Upper 5 stations; lower 6 stations |
| 5 | Material of Roller | 45# steel finish machining |
| 6 | Material of Main Shaft | 45# steel |
| 7 | Material of Shaft | 90 mm 45#steel |
| 8 | Driven Motor Power | 3KW |
| 9 | Hydraulic Station Power | 3KW |
| 10 | Hydraulic Station Pressure | 12.0 Mpa |
| 11 | Electrical Control System | Delta PLC |
| 12 | Material of blade | GCr12 |
| 13 | Driving Mode | gear |
| 14 | Material Thickness | 0.12-0.6mm |
| 15 | Power Supply | 380V, 50HZ, 3 PHASES |
| 16 | Cutting accuracy | ±2 mm |
Gửi yêu cầu của bạn trực tiếp đến chúng tôi
