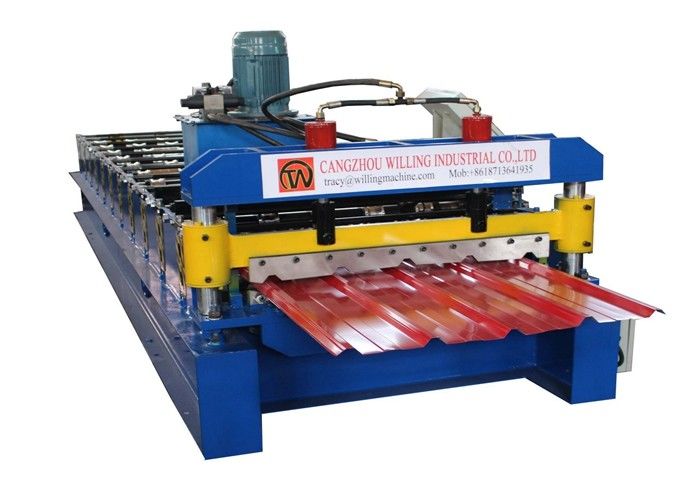

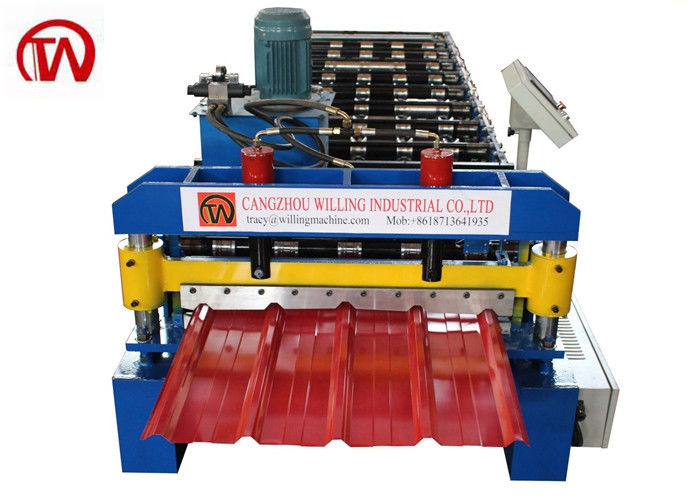

5 Ribs Trapezoidal Sheet Wall Roof Roll Forming Machine 11 Rows
Application
This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. Pretty appearance
2. Various special model
3. mature foreign trade team
4. professional designing team
5. Lifetime maintenance
Equipment Detailed Parameters:
| No. | Item | Description |
| 1 | Coil | Width:1000mm |
| 2 | Forming speed | 8-10 m/min (not including cutting time) |
| 3 | Roller Stations | 11stations |
| 4 | Material of Roller | 45# steel finish machining, plated hard chromium surface |
| 5 | Material of Main Shaft | 45# steel finishing machining and then slack quench processed |
| 6 | Material of Shaft | 70 mm 45#steel forged |
| 7 | Driven Motor Power | 3KW |
| 8 | Hydraulic Station Power | 3 KW |
| 9 | Hydraulic Station Pressure | 12.0 Mpa |
| 10 | Electrical Control System | DELTA PLC |
| 11 | Dimension (L*W*H) | 5500mm*1250mm*1200mm |
| 12 | Material of Cutter | GCr12 |
| 13 | Driving Mode | single chain 0.6 inch |
| 14 | Material Thickness | 0.3-0.6mm |
| 15 | Power Supply | 380V, 60HZ, 3 PHASES |
| 16 | Cutting accuracy | ±2 mm |
1. Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.
2. Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.
3. Q: How does your factory do regarding quality control?
A: Quality is priority.To all willing people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.
4. Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.
5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
