Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU WILLING
Chứng nhận:
ISO CE
Số mô hình:
Bảng điều khiển bánh sandwich len rock

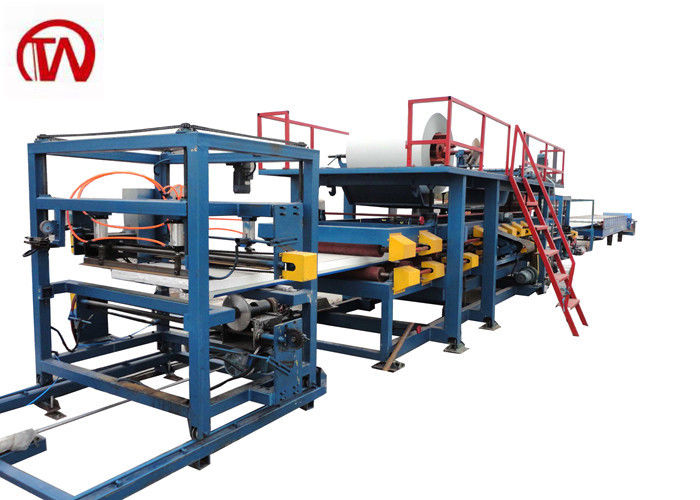

Metal Insulation Materials Construction Rock Wool Sandwich Panel Roll Forming Machine
This equipment adopts advanced production technology, which integrates gas, electricity and machinery. It is a special mechanical equipment for processing color steel heat-insulating composite panels. The working speed is stepless speed regulation, which can produce composite panels at one time. Machine, forming machine, compound machine (crimping, glue spraying, heating, bonding, crimping, slotting, trimming, cutting) are necessary equipment for the production of roofs and wall panels in industrial plants, warehouses, etc.
Profile
PS: The machine can produce both rock wool composite plate and foam composite board.
Specification
| No. | Item | Description |
| 1 |
Dimensions (L*W*H) |
400000 mm*2250 mm*2500 m |
| 2 | Steel Thickness | 0.25 mm- 0.8 mm |
| 3 | Sandwich Panel Thickenss | 50 mm - 300 mm |
| 4 | Roller Station |
Up layer: 13 rows. Down layer: 14 rows |
| 5 |
Working Speed |
4 m /min |
| 6 |
Power |
Main motor power: 4kw . Flying saw power: 2*0.75kw |
| 7 |
Total Power |
32 KW |
| 8 |
Machine Weight |
22 tons |
| 9 |
Steel Coil Width |
1000 mm 1200 mm 1250 mm |
| 10 |
Hydraulic motor power |
15 kw |
| 11 |
Cutting Accuracy |
±2 mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 45 working days after the down payment is received.
