Nguồn gốc:
TRUNG QUỐC
Hàng hiệu:
cangzhou willing
Chứng nhận:
CE,ISO
Số mô hình:
C8
Băng hình
Băng hình
Băng hình

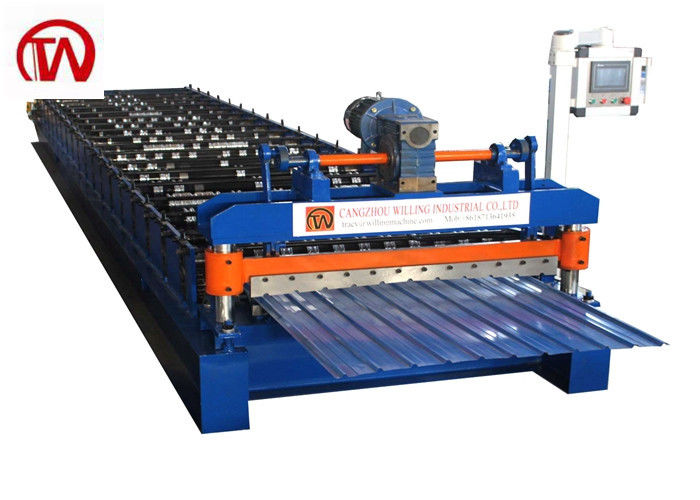

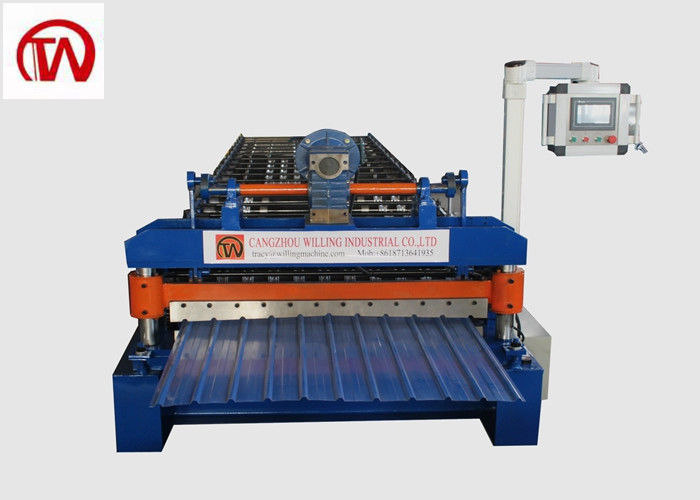

Multi RibsTrapezoidal Sheet Wall Roof Roll Forming Machine
As a professional manufacturer,we can make China Roof Roll Forming Machine by customer`s demand, with a profile drawing and thickness, we can design the machine quickly.Until now,we can do many kinds of roof panel machine,such as trapezoidal sheet making machine, corrugated sheet making machine, glazed tile making machine, Double Layer Roll Forming Machine and so on.
Equipment Detailed Parameters:
| No. | Item | Description |
| 1 | Raw material Standard | 1250mm |
| 2 | Working Speed | 8-15m/min (not including cutting time) |
| 3 | Roller Stations | 14 stations |
| 4 | Material of Roller | 45# steel quenching process and chrome coated |
| 5 | Material of Main Shaft | 45 steel forged, |
| 6 | Material of Shaft | 70 mm forged 45#steel, quenching process |
| 7 | Main Motor Power | 4KW |
| 8 | Electrical Hydraulic Station Power | 4KW |
| 9 | Hydraulic Station Pressure | 12.0 Mpa |
| 10 | Electrical Control System | PLC Panasonic Japan |
| 11 | Dimension (L*W*H) | 6700mm*1550mm*1300mm |
| 12 | Material of Cutter | Cr12 Mov HRC 58-62 |
| 13 | Driving Mode | single chain 1 inch |
| 14 | Material Thickness | 0.25-0.8mm |
| 15 | Cutting accuracy | ±2mm |
| 16 | Power Supply | 380V, 60HZ, 3 PHASES |
We are the most professional in China,we do our best to benefit for you,our machines are best-quality;
From the photo seeing :All kinds of tile type machine we did for customers ;
We lengthen the plate beside the machine to make the machine strong during working;
When you visit and come to China ,we can teacher you how to use it ;
Appear any questions ,we will try our best help you deal with ;
Meanwhile ,if any parts go broken and not artificial damage ,we will send you new one with free.
