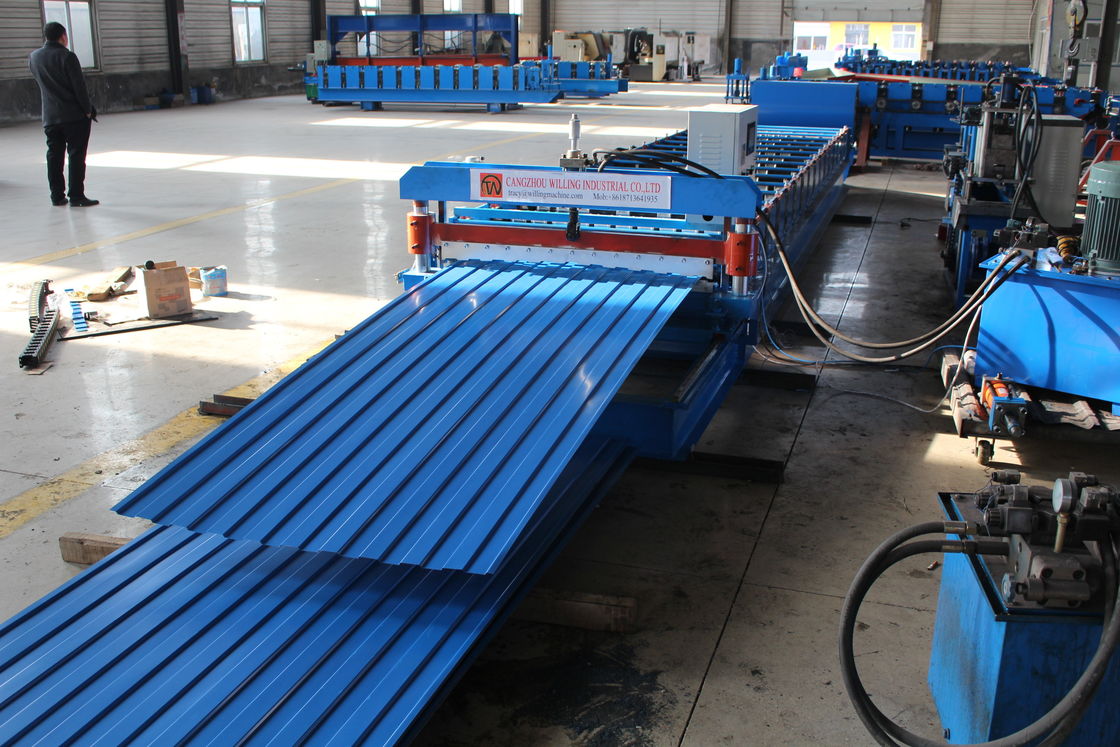

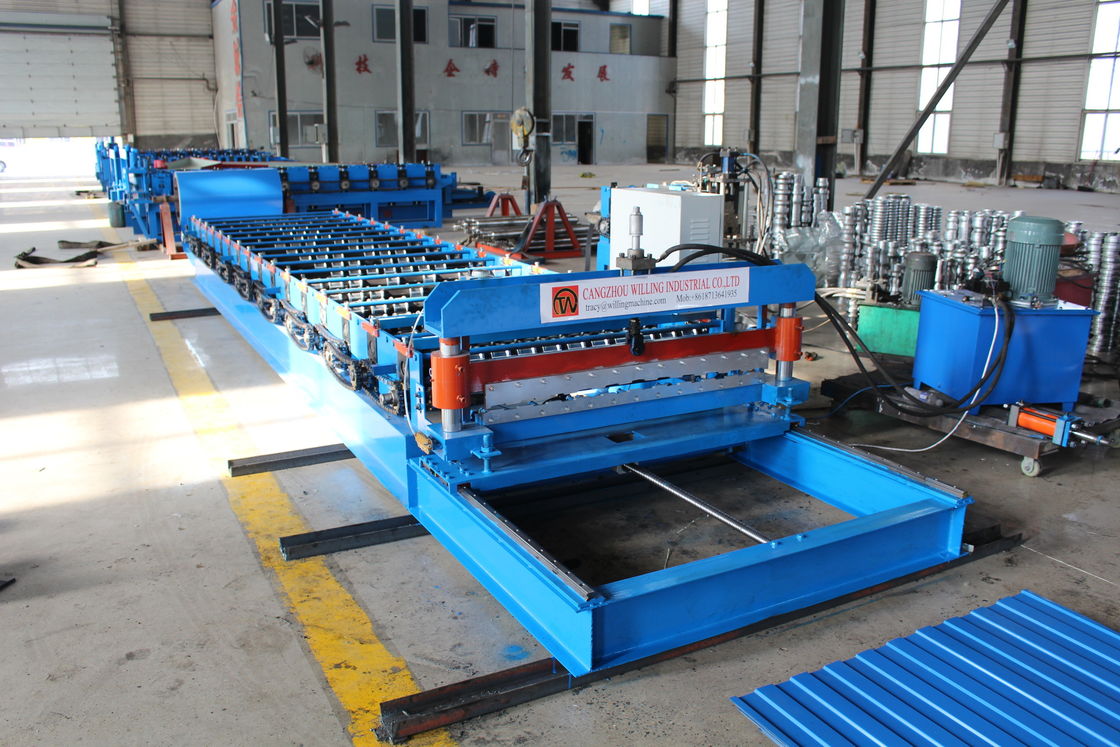

None Stop Cutting C8 Roof Roll Forming Machine Fast Speed 20-30m/min
1. None stop cutting
2. Fast speed:20-30m/min
3. Save time and cost
Equipment Detailed Parameters:
| No. | Item | Description |
| 1 | Raw material Standard | 1250mm |
| 2 | Working Speed | 8-15m/min (not including cutting time) |
| 3 | Roller Stations | 14 stations |
| 4 | Material of Roller | 45# steel quenching process and chrome coated |
| 5 | Material of Main Shaft | 45 steel forged, |
| 6 | Material of Shaft | 70 mm forged 45#steel, quenching process |
| 7 | Main Motor Power | 4KW |
| 8 | Electrical Hydraulic Station Power | 4KW |
| 9 | Hydraulic Station Pressure | 12.0 Mpa |
| 10 | Electrical Control System | PLC Panasonic Japan |
| 11 | Dimension (L*W*H) | 6700mm*1550mm*1300mm |
| 12 | Material of Cutter | Cr12 Mov HRC 58-62 |
| 13 | Driving Mode | single chain 1 inch |
| 14 | Material Thickness | 0.25-0.8mm |
| 15 | Cutting accuracy | ±2mm |
| 16 | Power Supply | 380V, 60HZ, 3 PHASES |
