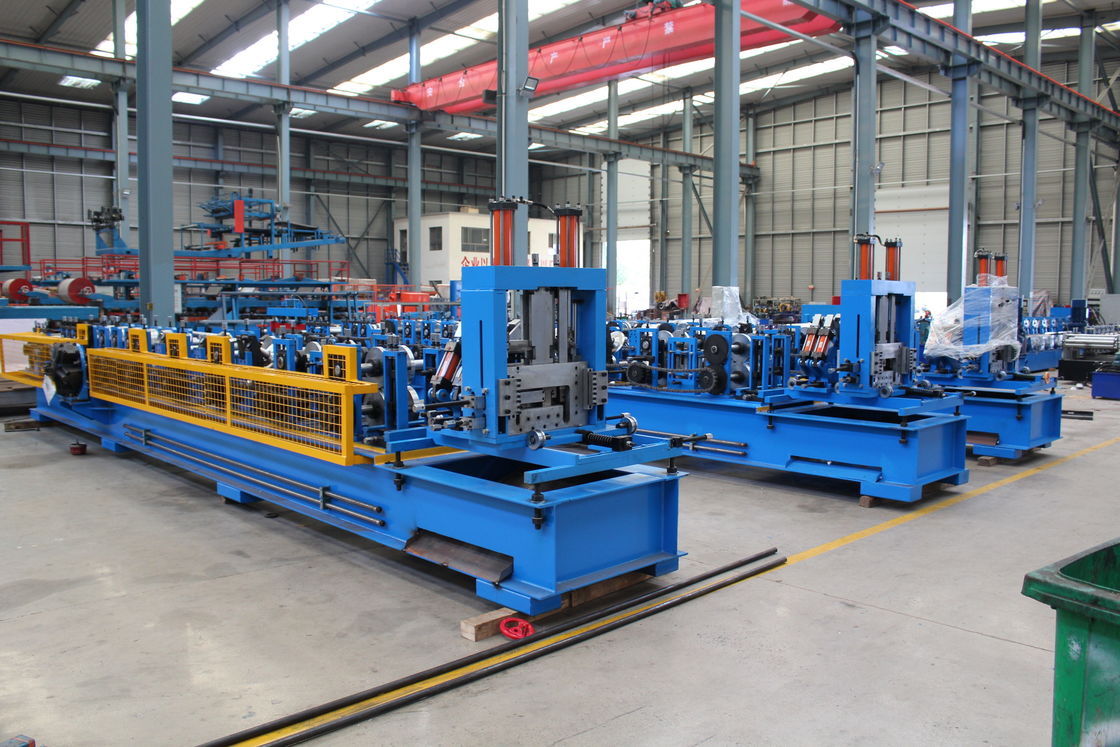

Automatic Interchangeable Metal Roofing Purlin C Z Purlin Roll Forming Machine
Specification
| No. | Item | Description |
| 1 | Coil | Galvanized |
| Material Thickness | 1 mm- 3 mm | |
| 3 | Working Speed | 20- 25 m/min ( not including the cutting time) |
| 4 | Roller Station | 15 Raws |
| 5 |
Dimension (L*W*H) |
9000 mm*1000 mm*1300 mm |
| 6 | Machine Weight | 9500 KG |
| 7 |
Electrical Control System |
Panasonic PLC (can be customized) |
| 8 |
Drive Motor Power |
30 KW |
| 9 |
Hydraulic Station Power |
30 KW |
| 10 |
Power Supply |
360V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 2 inch |
| 13 |
Material of Shaft |
80 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
C Purlin Size
Z Purlin Size
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
