Nguồn gốc:
TRUNG QUỐC
Hàng hiệu:
cangzhou willing
Chứng nhận:
CE,ISO
Số mô hình:
686 & 762
Băng hình
Băng hình
Băng hình
Băng hình

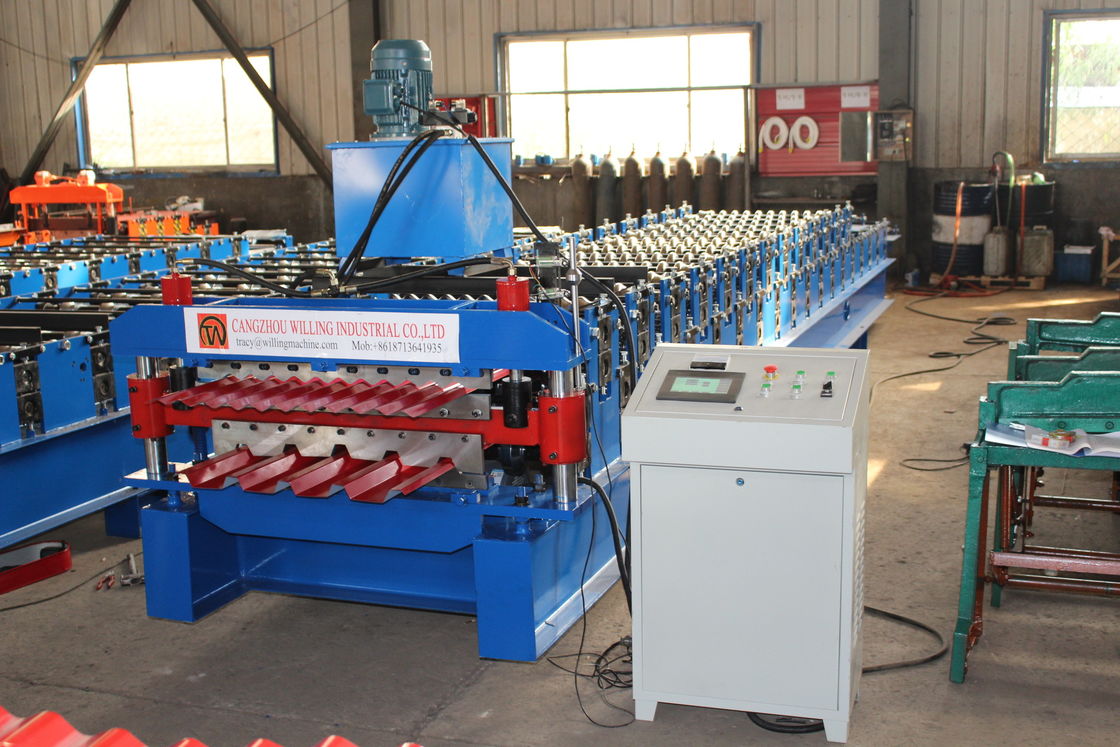

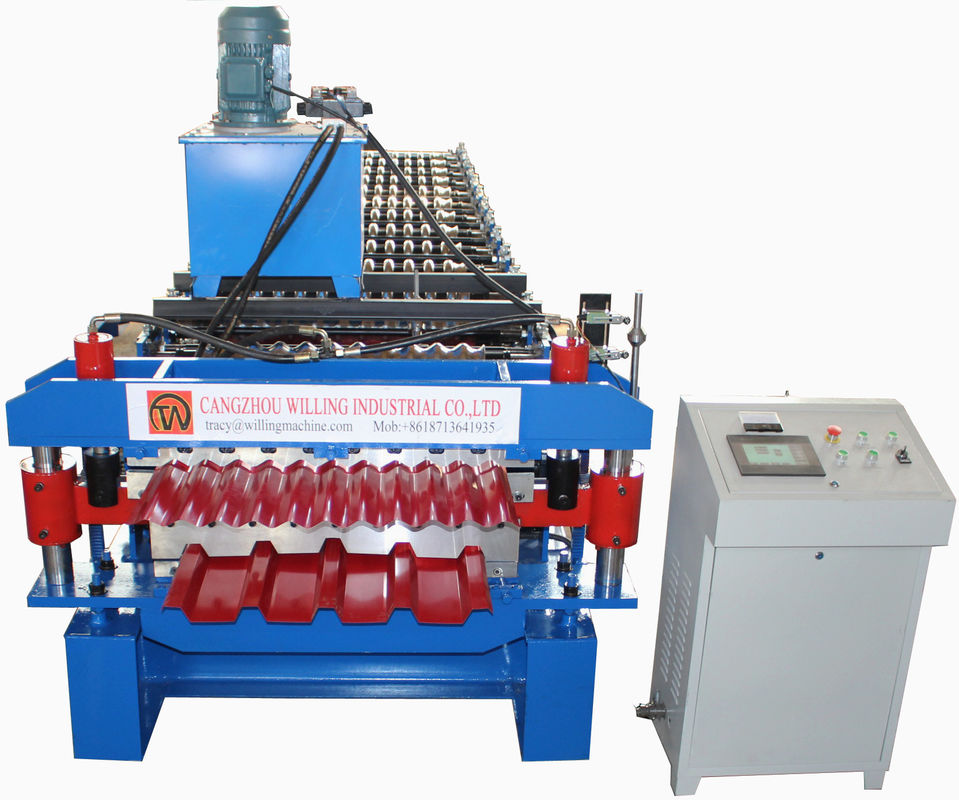

High Speed Double Deck Roof Roll Forming Machine PLC Control System
To meet the requirements for roll forming two different profiles in a limited plant area with quick product changeover, We have various kinds of double layer roll forming machine.
The machine have alternating bottom and upper stands. Rolls for one profile( like ibr sheeting ) are installed in the bottom stands, and rolls for another profile(like corrugated sheeting )are mounted on the upper stands. The whole line will use only one uncoiler, one cutoff unit, one controlled box. But the machine can’t produce the 2 profiles at the same time.
Equipment Detailed Parameters:
|
No
|
||
|
|
Suitable Material | PPGI (235Mpa) |
|
2
|
Width of the raw material | Upper layer:925mm |
| Down layer:925mm | ||
| 3 | Rows of rollers | 13rows & 18 rows |
| 4 | Appearance size | 8500*1100*1200mm |
| 5 |
Total power
|
Main motor 4 kw Hydraulic station power 4kw |
| 6 | Thickness of raw material | 0.3-0.6mm |
|
7 |
Productivity |
8-15m/min upper layer |
| 8-15m/min down layer | ||
| 8 | Diameter of shaft | ￠70mm |
|
|
Voltage | 380V 50Hz 3phases |
| 10 | Big frame | 350H steel |
| 11 | Middle plate | 16mm |
1. We can produce the special machine,send your drawing to us,we can design for you.
2. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. We provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.
4. Engineers available to service machinery overseas.
5. If you come to visit our factory,we can book the room for you, car pick up to send.
Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!
