Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU WILLING
Chứng nhận:
ISO CE
Số mô hình:
Multi-Cor/Tôn
Băng hình
Băng hình
Băng hình

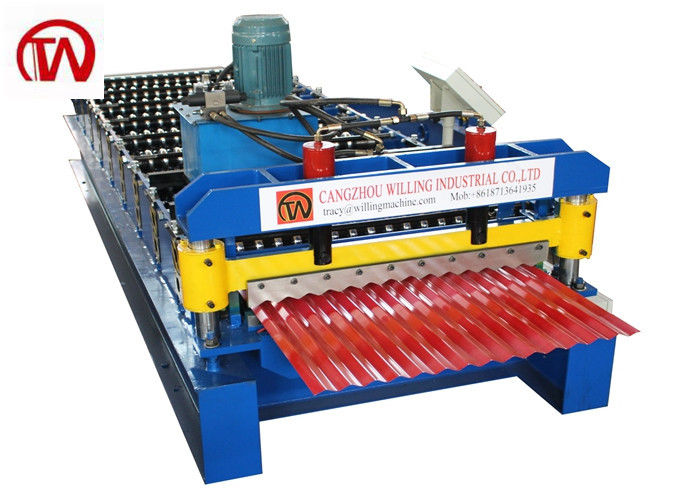

Multi - Cor Panel Metal Wall Profile Corrugated Panel Roof Roll Forming Machine

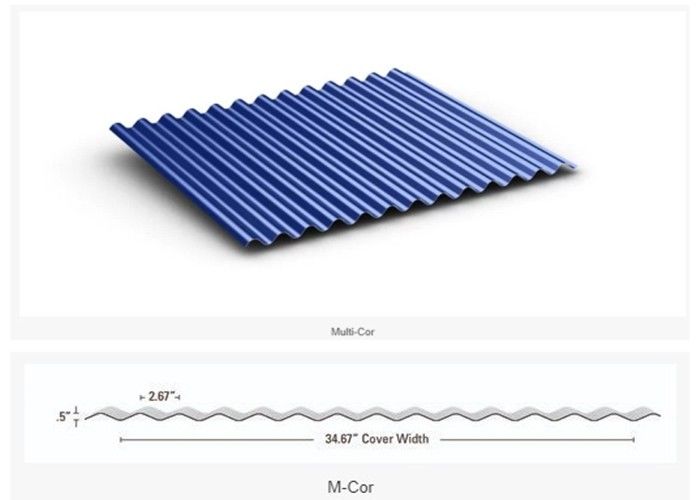

While quickly communicating their high-strength performance attributes, corrugated metal panels are reminiscent of yesteryear and simpler times. Consistent, rounded corrugations make Multi-Cor ideal panels to achieve nostalgic appeal whether installed as a wall, roof or interior accent panel.
For added aesthetic appeal, horizontal installations showcase corrugated design capabilities. Multi-Cor is similar in design, with M-Cor offering a more subtle rib height and configuration. We can design and produce different rib height, different width for the corrugated profiles roll forming machine.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 18-32 GA |
| 3 | Working Speed | 20-30 m/min ( not including the cutting time) |
| 4 | Roller Station | 13 Raws |
| 5 |
Dimension (L*W*H) |
6500 mm*1500 mm*1500 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
Panasonic PLC (can be customized) |
| 8 |
Drive Motor Power |
5KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
240V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
