Nguồn gốc:
TRUNG QUỐC
Hàng hiệu:
cangzhou willing
Chứng nhận:
CE,ISO
Số mô hình:
1600
Băng hình
Băng hình
Băng hình

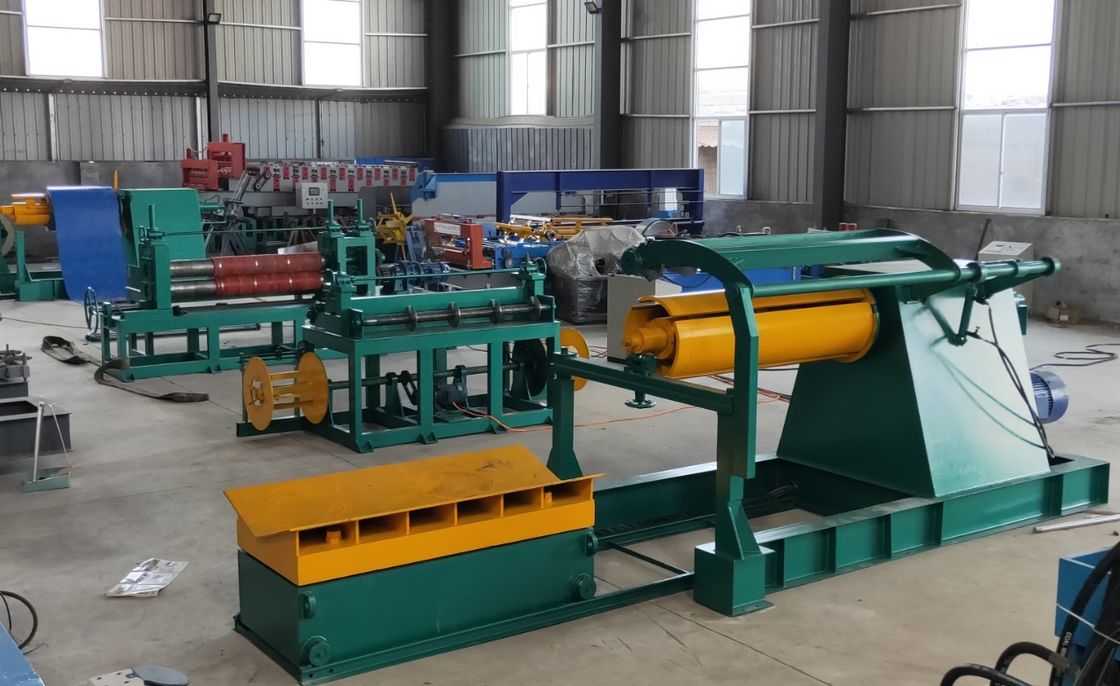

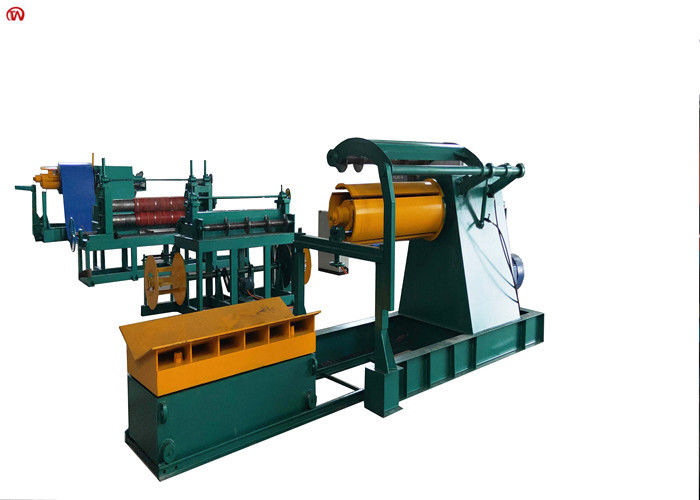

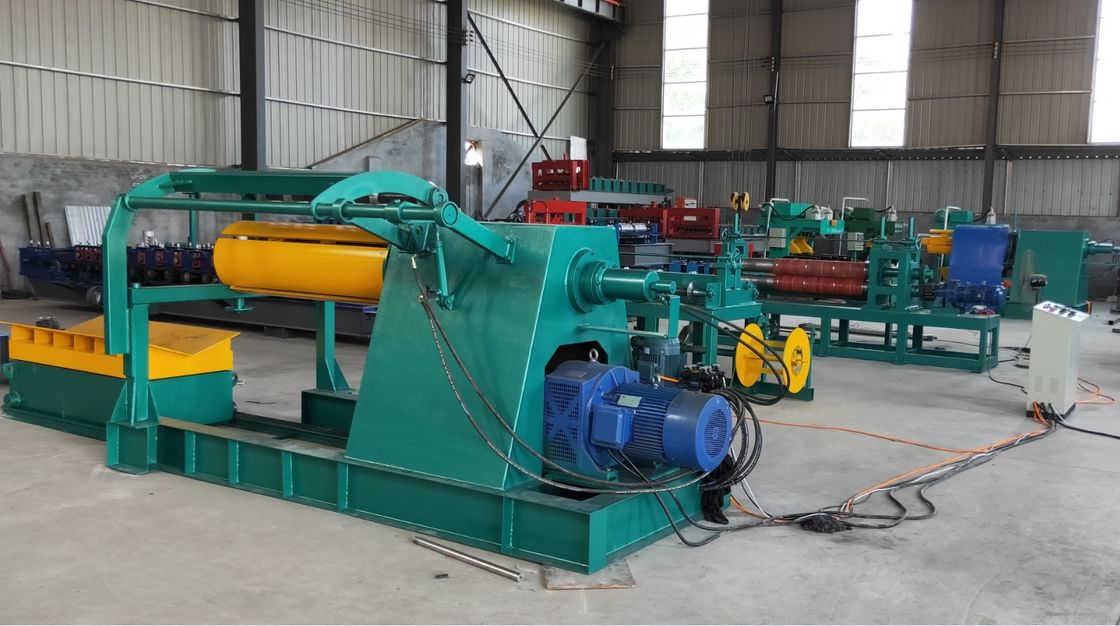

2mm Thickness 1600mm Width HR CR SS GI Steel Coil Slitting Line
1. Features:
corresponding width of metal work, and recoil the finished working piece.
It consists of Decoiler Machine, Feeder Machine, Slitting Machine, Scrap Filament Winding Machine, Slurry Guide, Tension Table, Recoiler Machine
etc.
Through change and arrange of the different specification blade spacer This line is a complete equipment for slitting to strip by or moving blade seat, can slit to different width working piece.
| Item | Unit | Optional range |
| Plate thickness | mm | 0.3 - 2 |
| Standard width | mm | 1600 |
| Uncoiled weight | T | 5 |
| Slitting width precision | mm | ±0.1-0.3 |
| Max, slitting number | pcs | 9 |
| Highest line speed | m/min | 20-30 |
| Total power | Kw | 40-50kw |
2. Process flow
Decoiler Machine---- Feeder Machine ---- Slitting Machine ---- Slurry Guide ---- Tension Table----Recoiler Machine
3. Technical Parameters
A.Decoiler
Tape outer diameter:¢508-¢1600mm
Tape outer width:600-1500m
Shaft diameter:¢180mm
Tight range:¢485mm--¢518mm
Tape Max roll weight:5 T
Working Speed:20-30 m/min
Roller Diameter:¢508mm
Effective length of the roll:1600mm
Center drive motor:5.5 kw
Car tape width:600mm--1600mm
Car loading weight:5T
Car Roll diameter:¢1000-¢1500mm
Car moving speed:4m/min
B. Slitting Machine
Cutting Width:max 1600mm
Cutting Thickness:0.3 -- 2mm
Cutter Material:LD+Ni
Motor Power :11kw
Cutter Shaft:¢150mm
Cutter Material:40Cr
Max slitting NO.: 9 pieces
Cutter quantity: 8pieces
C. Tension Table
Manual control, wheel
D. Recoiler
Tape outer diameter:¢508-¢1500mm
Motor Power :15kw
Car Motor Power: 4kw
Roller Diameter:¢508mm
Tape Max roll weight:5T
Main shaft diameter:¢180mm
Car tape width:600mm--1600mm
Car loading weight:5T
Car Roll diameter:¢1000-¢1500mm
Car moving speed:4m/min
Machine loading
All machines need one 40ft container to hold.
